ViaBlue™ T6s PHONO PLUGS STEREO 3.5 MM SMALL

by: ViaBlue


Collections: DIY Parts & Accessories

Category: ViaBlue

Type: DIY Parts



Price per piece.

Product description:

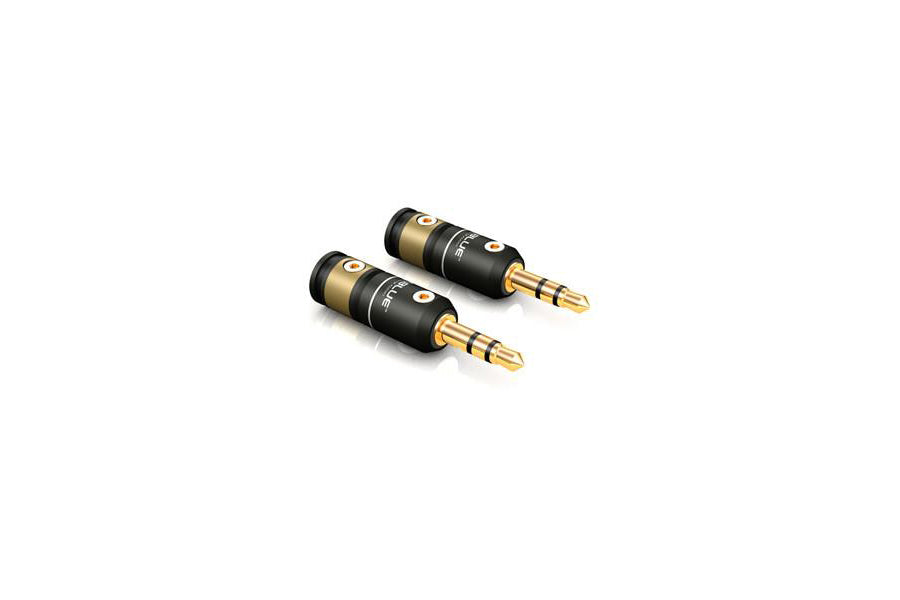

ViaBlue™ T6s phono 3.5 stereo plugs have contact pins made of bronze which are 24 carat gold-plated. The shells are made of aluminum. Cables up to 9.5 mm diameters can be installed. All connectors of the T6s series are supplied including two diameter decreasers. Those diameter decreasers make an assembly of cables with small and big diameter possible and grant a firm strain relief.

For the assembly the stripped cable ends are soldered at the contact parts of the T6s plugs. The contact part can be removed completely from the plug's shell. The M4 screw serves as strain relief. The shell for all plugs (exception: XLR plugs) of the ViaBlue™ T6s series is identical. Only the contact parts change.

Each T6s plug contains two diameter decreasers which serve for a firm strain relief and centric adjustment of the cables. Thus cables with an outter diameter of 1.5 mm up to 6.0 mm can be fixed firmly. Without using any diameter decreaser cables up to 6.0 mm can be installed.

  • Max. Außendurchmesser: 9.0 mm
  • Contact: 3.5 Stereo
  • ROHS conform
  • Finishing: 24 Karat Vergoldung
  • Total length: 38.5 mm
  • Cable entrance: for cables with Ø 1.5 - 6.0 mm
  • Packing unit: one piece
  • Screws: 1.5 mm HEX
