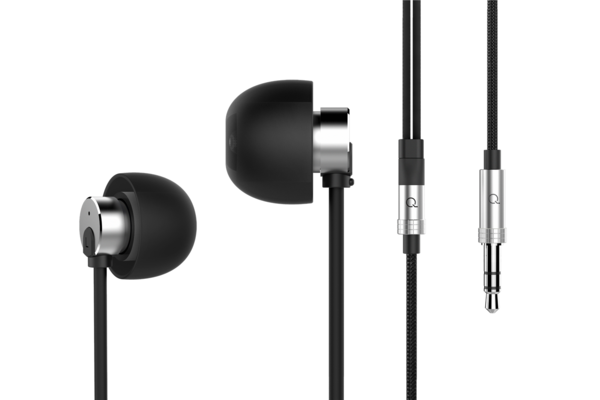

AAW Q In-Canal Monitor

by: Advanced AcousticWerkes




For Canada and United States customer, please kindly read the information posted here.

Overview

Designed to be the smallest audiophile earphone in the world, Q is a feat of precision engineering, advanced acoustic tuning, human ergonomics and audiology research.


The ICM Concept

Q forms its own unique class in the earphone world, which is depicted as ‘In-Canal Monitor’ or ICM. The patent pending design sees Q in a staggering micro size of 8.8mm in length, 6mm in diameter and weighs less than one gram per side. It is coupled with a proprietary designed silicone ear tip, approximately 70% of the Q’s body sits inside the auditory canal. Furthermore, the 6mm dynamic driver places itself in the front cavity of the acoustic chamber and the diaphragm spearheads the entire acoustic system, which makes the membrane to membrane distance minimized to a degree of less than 20mm. Such close proximity reduces unwanted resonation on the high frequency to produce a coherent and smooth treble while maintains excellent extension. Q is almost invisible when fully inserted, the smaller space in front of the diaphragm also reduces decay in bass energy and more accurately presents the deepness feeling in the bass realm. Despite the miniature size, Q offers a full bodied and organic sound, with deep impact and spatial sound stage.


The 6mm Dynamic Micro Driver

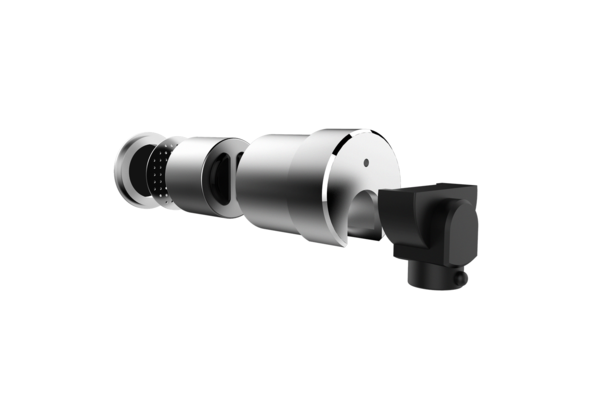

The AAW in-house developed 6mm driver is stainless steel bodied with ultra-thin bio-composite diaphragm. The center ring of the membrane is more rigid, coupled with lightweight voice coil allows faster movements and improves high frequency extensions. The outer ring is more tenuous configured so it moves air in higher amplitude and in turn offers better bass response. The tonality is specially tuned with in-canal application in mind. It is capable of extending to both extremes of the sound frequencies (10Hz to 40kHz).


Build and Ergonomics

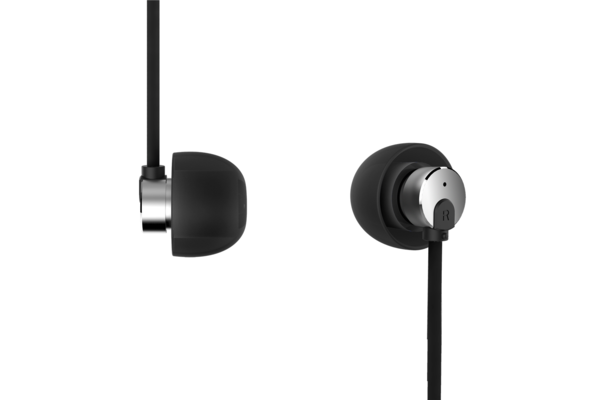

Q’s acoustic body is completed constructed in stainless steel. It is milled to such precision that the outer shell is of 200-micron thickness, it enables Q to maintain such a petite footprint so it is adaptable even for the smallest ear canals out there. The stainless steel material ensures hardness and durability is maintained despite the ultra-thinness. The Y-split and 3.5mm connector are built in the same fashion for everlasting lifespan. Since Q is made to be deep canal fit, AAW has put every effort in minimizing the cable microphonic effect while delivering an unparalleled sonic performance. Q’s cable can be worn straight down or over-ear, paired magnetic cable clip, cable noise is kept at bay.


Cable

Q’s cable is designed to be ultra-flexible and sheathed with high quality nylon sleeve for the longevity and at the same time to be aesthetically pleasing. The conductors are made of premium grade Oxygen Free Copper, strengthened with tensile nylon strands. It ensures precise signal transmission and rich detail retrieval, providing immense clarity over the sound realm with better depth, width, image focus and finer low range resolution.


Accessories

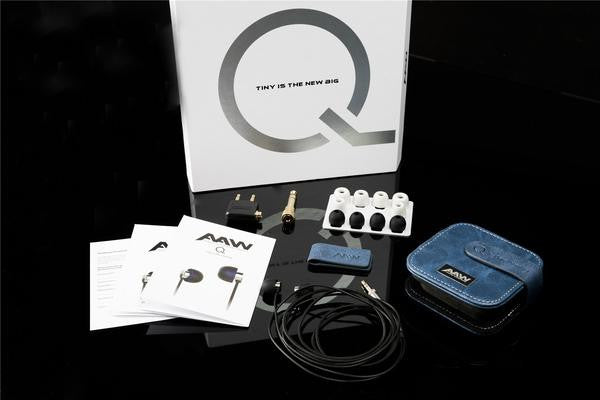

Being deep canal fit, right sized tips for Q are critical for a perfect fitting. Q comes with 3 pairs AAW proprietary designed silicone tips and 3 pairs of memory foam tips in various sizes. These tips are specially configured to have a special stem which hosts the Q’s stainless body and places the ICM firmly in ear canal. The memory foam tips expand to fit ear canal space and soften when in contact with body warmth. Q is also supplied with a magnetic cable clipper to fixate cable onto clothing to further eliminate cable noise. Standard flight adapter and 3/8” to 1/8” adapter is included as well. AAW has designed a premium leather pouch to holster Q, it is slim and compact to carry around and with cable management built in. A uniquely designed leather cable clip is also included to further eliminate cable noise.

  • Proprietary 6mm Dynamic MicroDriver
  • Impedance: 42Ohm
  • Frequency Range: 10Hz-400000Hz
  • Sensitivity: 113db SPL @ 1mW
  • Input Power: 3mW
  • Cable Length: 1.27m
  • Android/Apple dual mode inline remote control
  • Q In-Canal Monitor
  • Earphone sleeve: Flex 3 pairs, Ultra-Flex 3 pairs
  • AAW carrying pouch
  • Flight adaptor
  • 1/4 inch adaptor
  • User manual
  • Warranty card

Head-Fier ustinj Rating: 4.5/5.0

"The AAW Q is impressive in the innovative design, and it's very interesting to see this attempt at creating an extremely small IEM. Design is a great conversation starter as well ("Dude, look how tiny my earphones are!"). Surprisingly, the Q's 6mm microdriver sounds great for its size and probably outperforms many larger drivers as well."

http://www.head-fi.org/products/advanced-acousticwerkes-q/reviews/16720

Head-Fier Cinder Rating: 4.0/5.0

"If you love the idea of super tiny micro-driver IEM capable of pumping out solid midbass and an analytic upper-range, then the Q is for you."

http://www.head-fi.org/products/advanced-acousticwerkes-q/reviews/16530

Head-Fier B9Scrambler Rating: 4.0/5.0

"When it comes down to it, I really like the Q. The unique form factor captured my attention when I first saw them, and it still makes me smile at how AAW managed to pull out such a solid sound from something the size of an eartip. It's a pretty crazy achievement and I hope other manufacturers stand up and take notice."

http://www.head-fi.org/products/advanced-acousticwerkes-q/reviews/16719

Head-Fier chef8489 Rating: 4.0/5.0

"Big Big sound in such a small package."

http://www.head-fi.org/products/advanced-acousticwerkes-q/reviews/16772

Head-Fier HiFiChris Rating: 4.0/5.0

"AAW have created a ridiculously tiny ear canal monitor with a really strong bass that fits well for a noisy portable environment. The technical qualities of this in-ear are strong and the micro dynamic driver sounds very nimble, fast and controlled, despite the strong elevation in the lows"

http://www.head-fi.org/products/advanced-acousticwerkes-q/reviews/17112
